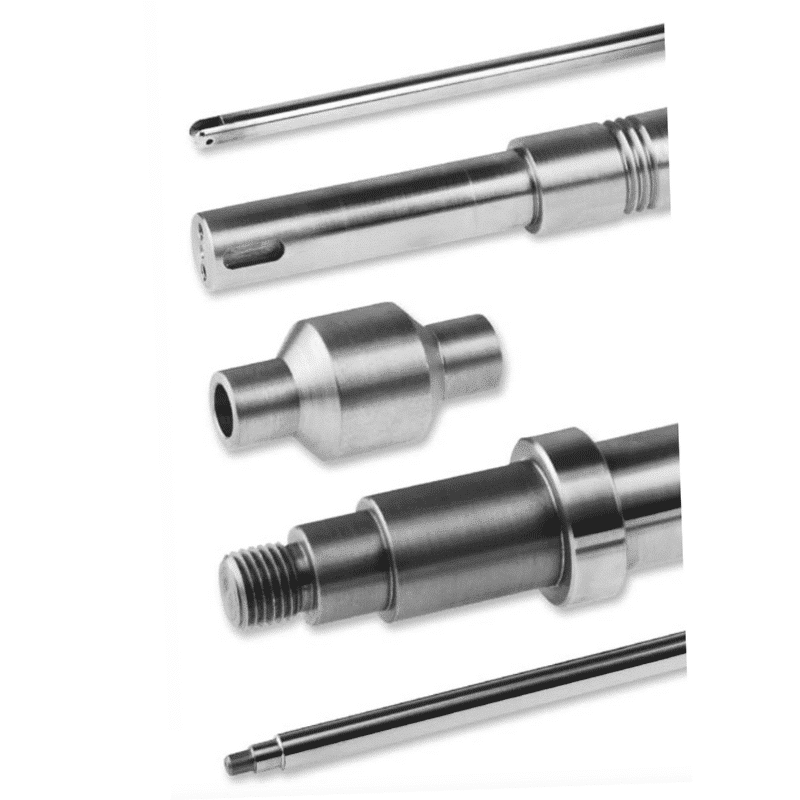

Credimex Guide Shafts

Description

Credimex Guide Shafts line offers various product series:

WV

• Very high surface hardness
• No corrosion resistance

WV1

• Outer diameter hardened and 5-10μ hard chrome plated
• Corrosion resistant

WRS 1

• High surface hardness
• Corrosion resistant

WRS 2

• High surface hardness
• Corrosion and acid resistant

WH

• Very high surface hardness
• Low weight
• Cable and media guidance possible
• No corrosion resistance

Product benefits

Precision Credimex guide shafts in various materials and designs, together with linear ball bearings, shaft blocks, shaft supports and linear housing units, provide a proven and economical linear guide system. Precision guide shafts are induction hardened. This treatment ensures uniform hardness in radial and axial direction on the surface / running surface. This hardening process achieves an effective hardness range of the outer surface and enables trouble-free machining in the soft core of the shaft. Precision guide shafts are ground centerless and are subject to strict inspection of roundness, cylindrical shape, straightness and roughness of the surface. Choose the suitable precision guide shaft according to your requirements.

Application

The product line is created for wide variety of industrial applications.
