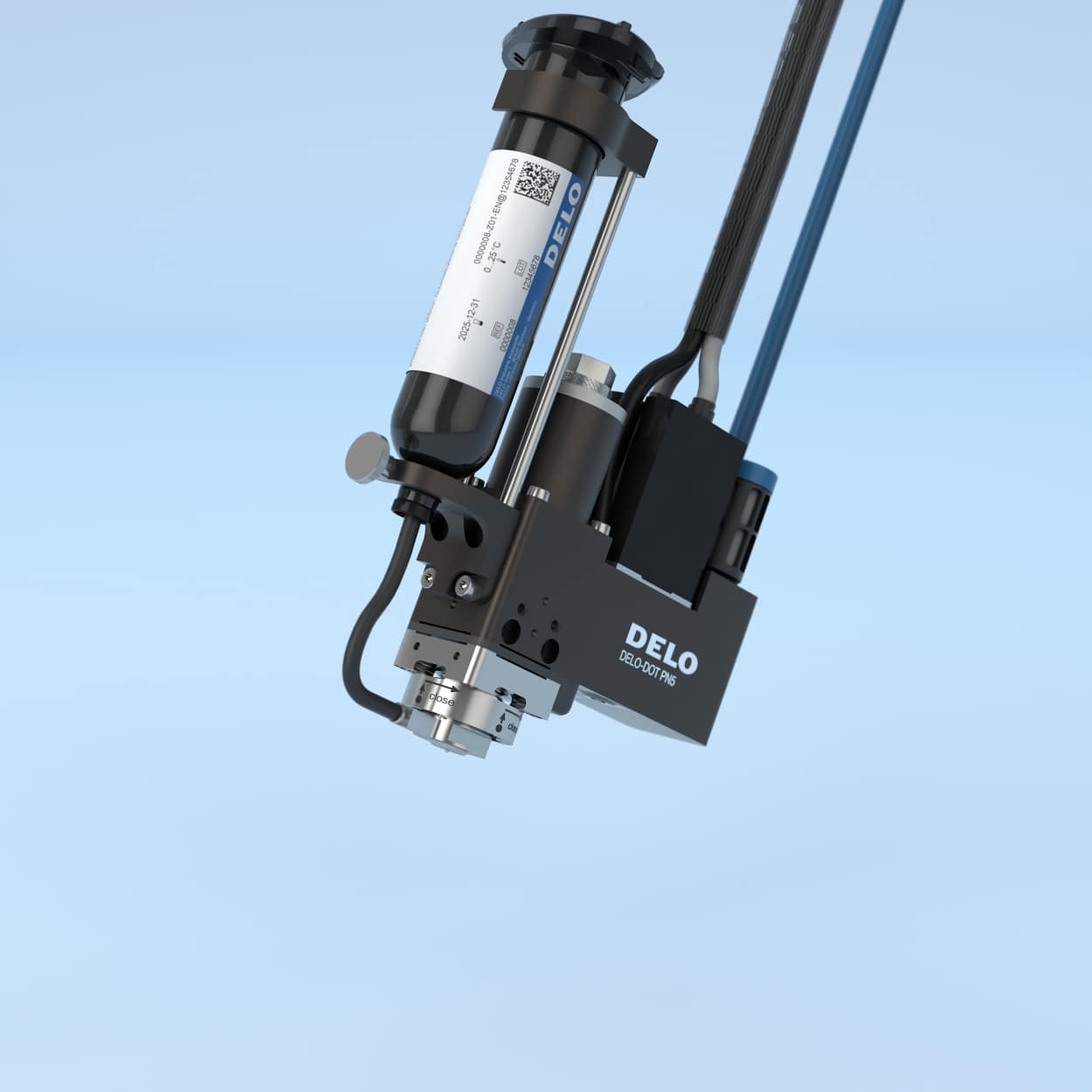

DELO-DOT PN5

The DELO-DOT PN5 pneumatic jet valve is optimal for complex microdispensing. Thanks to very short cycle times and reproducible processes, this valve is ideal for industrial series production. With a dispensing frequency of up to 300 Hz and the highest plunger speeds, the valve delivers maximum performance. Even highly viscous materials can be applied completely contact-free in the smallest diameters of <250 µm.

Benefits

DELO-DOT PN5 is designed to be user-friendly. The modular design makes both maintenance and cleaning uncomplicated. Thanks to its space-saving design, the jet valve can be ideally integrated into any production line. The cartridge holder, which can be placed at a 90° angle, allows media to be fed from all four sides of the unit, depending on the system.

• Reliable and precise dispensing, even of highly viscous, complex materials
• Reproducible results in different drop sizes due to individual power setting and exchangeable nozzles
• No-tool change of nozzles and fluidic plunger thanks to bayonet lock
• Compact dimensions of the valve and the control box for space-saving integration in systems
